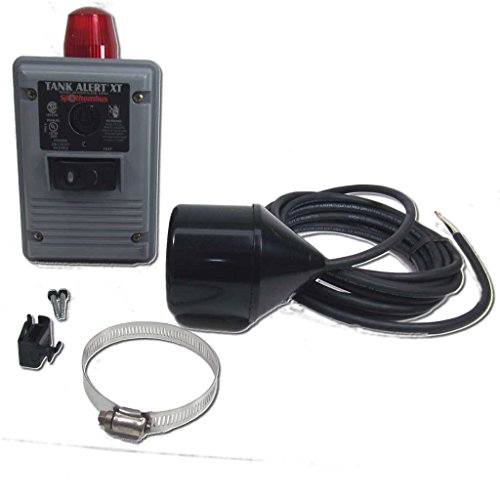

SJE-Rhombus Tank Alert XT – Indoor/Outdoor Tank Alarm with Auto Reset

Tank Alert alarms provide audio/visual warning of potential threatening liquid level conditions. The Tank Alert XT indoor/outside alarm system provides audio/visual warning of potential threatening liquid level conditions in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural and other non-potable water applications. If an alarm condition occurs, the horn sounds and red alarm beacon activates. The horn can also be turned off, however the alarm beacon remains on until the condition is remedied. Once the condition is cleared the alarm will mechanically reset. Specifications VOLTAGE: 120 VAC, 50/60 Hz, 7 watts max. (alarm condition) ALARM ENCLOSURE: 16.51 x 11.43 x 7.62 cm (6.5 x 4.5 x 3.0 inches), indoor/outside weatherproof thermoplastic which meets Type 3R water-tight standard ALARM HORN: 85 decibles at 3 meters (10 feet) meets Type 3R water-tight standard as installed by factory ALARM BEACON: Meets Type 3R water-tight standard as installed by factory TEST/SILENCE SWITCH: Certified to IP66 and IP68 standards AUXILIARY ALARM CONTACTS (Optional): 120 VAC. 5 amps max., 50/60 Hz PRE-MOUNTED TERMINAL BLOCK (Optional): 20 amps, 120/230 VAC POWER CORD (Optional): 1.8 meter (6 foot) cord with 120 VAC plug FLOAT SWITCH: Sensor Glide regulate switch with mounting clamp Cable: 4.57 meters (15 feet), flexible 18 gauge, 2 conductor (UL) SJOW, water-resistant (CPE) Glide: 8.58 cm diameter x 11.56 cm long (3.38 inches x 4.55 inches), high affect, corrosion resistant PVC housing to be used in sewage and water as much as 60oC (140oF) Switch: Hermetically sealed steel capsule features mercury-to-mercury contacts Maximum line impedance for initiating devide: 100 ohms Enclosure meets Type 3R water-tight standard Automatic alarm reset Horn silence switch and alarm test switch Alarm horn sounds at 85 decibels at 3 meters (10 feet) Alarm system (when installed on a separate circuit) operates even supposing pump circuit fails
